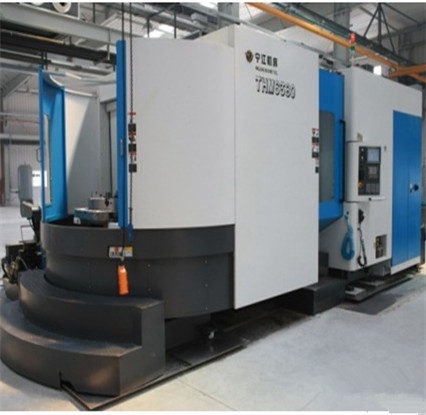

Horizontal Machining Center THM6380

Author：CVVT.SIANJIA FLOW CONTROL Public Time：2014-04-23 Views：2098

Machine characteristic：
The five castings are guide by finite element analysis, reasonable layout ensures the machine to endure high torque and high impact.
With a T type machine base, the machine is in a high rigidity and with no vibration when machining.
With a taper structure, it makes sure worktable’s positioning accuracy, as well as a reliable repeatability.
The spindle is with gear transimmit, it realized high torque cutting.

Technical Parameters：
Pallet size: 800X800mm
Max.tool diameter: Ф1250mm
Positioning accuracy: 0.008mm
Repeat positioning accuracy: 0.004mm
B axis positioning accuracy: 8″
B axis repeat positioning accuracy: 4″
